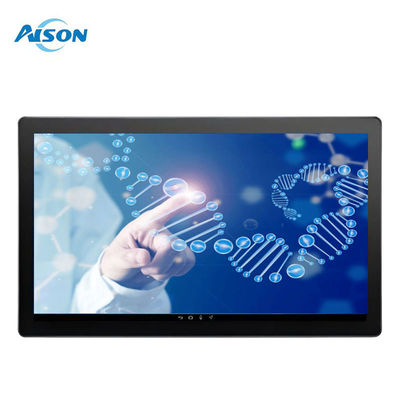

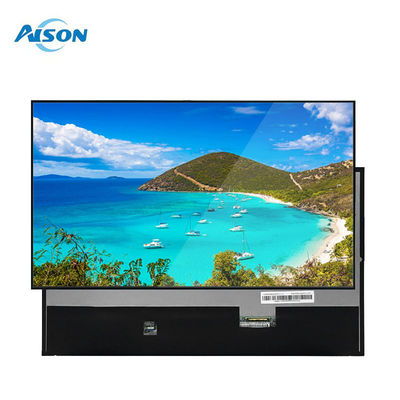

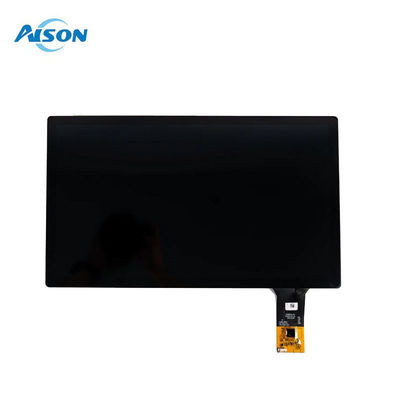

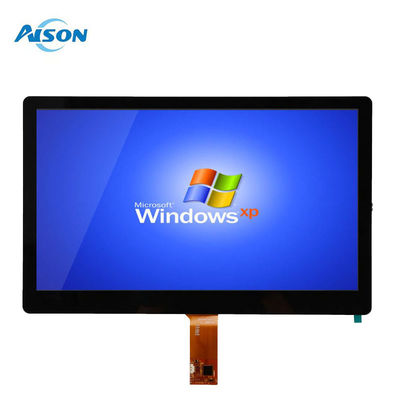

15.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch

15.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch
15.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch
15.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch 15.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch 15.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch 15.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch 15.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch

Grote Afbeelding :  15.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch

Productdetails:
Place of Origin: Guangdong,China
Merknaam: AISON
Certificering: ISO9001 / ISO14000/ROHS
Model Number: Z156FH03-CT2
Betalen & Verzenden Algemene voorwaarden:
Minimum Order Quantity: 1
Prijs: Onderhandelbaar
Packaging Details: Carton/Blister
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200k/month
Contact

15.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch

beschrijving
Product Name: 15.6 inch 1920x1080 LVDS TFT Display Resolution: 1920x1080
Module Size: 372.16*221.59*8.2mm Active area: 344.16 (H) ×193.59 (V) mm
LCM Type: LVDS Brightness: 500/1000 cd/m2
Operating temperatures: -20 to 70 degree Storage temperatures: -30 to 80 degree
Display Type: Normally Black Touch Driver IC: ILI2511
Touch Interface: USB &I2C
Markeren:

15.6 inch IPS LCD display

,

1000nits brightness industrial display

,

LVDS interface HD TFT display

15.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP Touch



General Description


15.6” wide format Active-Matrix LCD module (“TFT LCD”) with Full HD resolution. It combines wide viewing angle 85/85/85/85 with high luminance 1000cd/m2. The 15.6 inch LVDS TFT Display has very good readability even under strong and direct sunlight.

Typical applications:

  • Marine
  • General outdoor usage

Main characteristics are:

  • Diagonal : 15.6”
  • Resolution : Full HD, 1920 x 1080
  • Wide viewing angle (u/d/l/r) : 85°/85°/85°/85°
  • High luminance : 1000 cd/m2
  • With PCAP Touch Panel

Aison is an TFT LCD Screen manufacturer, providing a full range of 0. 85 inch to 15.6 inch small and medium size standard TFT LCD modules, TFT screen modules, TFT display modules, display industry, industrial TFT Display, visually outstanding TFT LCD display in sunlight screen, industrial custom TFT displays, TFT full temperature LCD dispalys, industrial TFT LCD modules, industrial touch screen.Our TFT LCD modules are ideal for industrial control equipment, medical devices, POS systems, consumer electronics, communication equipment, and office supplies.and more.




General Data

Model Name 15.6 inch PCAP LVDS TFT Display
Resolution 1920x1080
Model Size (W*H*T)
372.16*221.59*8.2mm
Display Area (W*H) 344.16 (H) ×193.59 (V) mm
Interface LVDS
Display Mode Normally Black,Transmissive
Viewing Angles 85/85/85/85
Brightness 1000 cd/m2
Pin number 30 pin
Touch
with Capacitive Touch Panel
Operating temperatures -20 to 70 ℃
Storage temperatures -30 to 80 ℃



Drawing

15.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch 015.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch 1



Product Details

15.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch 215.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch 315.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch 4



TFT Applications

From industrial machinery and equipment to HMI (Human-Machine Interface) systems, POS (Point of Sale) terminals, and outdoor vending systems, this high resolution TFT LCD display module offers excellent performance and reliability.



15.6 Inch High Brightness 1000nits 1920 * 1080 HD LVDS Interface IPS LCD Display With PCAP touch 5

label:

Industrieel beeldscherm,

industriële LCD vertoning,

Industriële displaymodule
